GeoProcessor / Command / ReadGeoLayersFromFGDB

Overview

The ReadGeoLayersFromFGDB command reads one or more GeoLayer(s) from an Esri File Geodatabase.

Command Editor

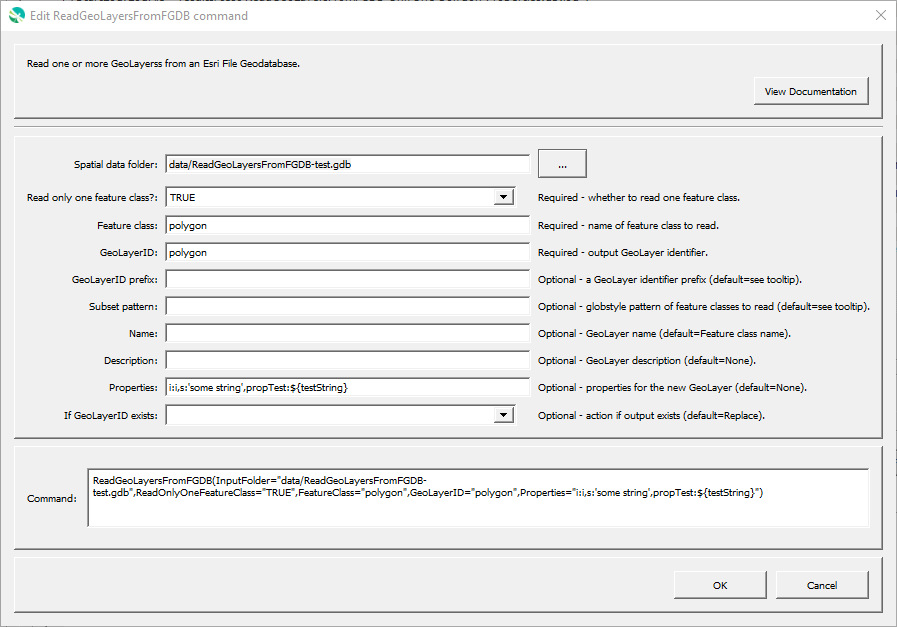

The following dialog is used to edit the command and illustrates the command syntax.

ReadGeoLayersFromFGDB

ReadGeoLayersFromFGDB Command Editor (see full-size image)

Command Syntax

The command syntax is as follows:

ReadGeoLayerFromFGDB(Parameter="Value",...)

Command Parameters

Parameter                                 Description                      Default
InputFolder
required		 The file geodatabase to read (must end in .gdb). None - must be specified.
ReadOnlyOneFeatureClass
required		 Boolean

If TRUE, only one feature class will be read as a GeoLayer. Must specify a valid feature class name.
If FALSE, one or more feature classes will be read as GeoLayers. Can specify the Subset_Pattern to select which feature classes to read.
IfGeoLayerIDExists The action that occurs if the GeoLayerID already exists within the GeoProcessor:
  • Replace - The existing GeoLayer within the GeoProcessor is replaced with the new GeoLayer. No warning is logged.
  • ReplaceAndWarn - The existing GeoLayer within the GeoProcessor is replaced with the new GeoLayer. A warning is logged.
  • Warn - The new GeoLayer is not created. A warning is logged.
  • Fail - The new GeoLayer is not created. A fail message is logged.
 Replace
IF ReadOnlyOneFeatureClass is TRUE ...
Feature Class
required		 The name of the feature class within the file geodatabase to read. ${Property} syntax is recognized. None - must be specified.
GeoLayerID
required		 A GeoLayer identifier. Formatting characters and ${Property} syntax are recognized. Refer to documentation for best practices on naming GeoLayer identifiers. None - must be specified.
IF ReadOnlyOneFeatureClass is FALSE ...
GeoLayerID_prefix A GeoLayer identifier prefix.

GeoLayers read from a file geodatabase have an identifier in the GeoLayerID_prefix_FeatureClass format.		 No prefix is used. The GeoLayerID is the name of the feature class.
Subset_Pattern The glob-style pattern (e.g., CO_* or *_[MC]O) of feature classes to read from the file geodatabase. No pattern is used. All feature classes within the file geodatabase are read.
Name Name of the output GeoLayer. Feature class name.
Description Description for the output GeoLayer.
Properties Additional properties to assign to the GeoLayer, using format: prop1:value1,prop2:'string with space'. Can use ${Property} notation. No additional properties are assigned.

Examples

The following folder, ExampleFolder, and its contents are used for the examples. The ExampleFolder is not an actual existing folder. It is used in this documentation to explain how the ReadGeoLayersFromFGDB command interacts with similar, existing folders on the computer.

ExampleFolder

Filename File Type
ExampleFileGDB.gdb Esri File Geodatabase

ExampleFileGDB.gdb

Feature Class
ExampleFeatureClass1
ExampleFeatureClass2
ExampleFeatureClass3

Example 1: Read All Feature Classes from a File Geodatabase

See the automated tests.

ReadGeoLayersFromFGDB(InputFolder="ExampleFolder/ExampleFileGDB.gdb")

After running the command, the following GeoLayer IDs are registered within the GeoProcessor.

Registered GeoLayer IDs
ExampleFeatureClass1
ExampleFeatureClass2
ExampleFeatureClass3

Example 2: Add a Prefix to the GeoLayer IDs

ReadGeoLayersFromFGDB(InputFolder="ExampleFolder/ExampleFileGDB.gdb",GeoLayerID_Prefix="StateData")

After running the command, the following GeoLayer IDs are registered within the GeoProcessor. Each of the registered GeoLayer IDs include the StateData prefix.

Registered GeoLayer IDs
StateData_ExampleFeatureClass1
StateData_ExampleFeatureClass2
StateData_ExampleFeatureClass3

Example 3: Read a Subset of Feature Classes From a File Geodatabase

ReadGeoLayersFromFGDB(InputFolder="ExampleFolder/ExampleFileGDB.gdb",Subset_Pattern="*3")

After running the command, the following GeoLayer IDs are registered within the GeoProcessor. ExampleFeatureClass1 and ExampleFeatureClass2 are not included in the registered GeoLayer IDs becasue the Subset_Pattern parameter only includes feature classes that end in 3.

Registered GeoLayer IDs
ExampleFeatureClass3

Troubleshooting

  • Requires GDAL/OGR 1.11.0+
  • Requires ESRI FileGDB driver to be installed within QGIS environment
  • TODO egiles 2018-01-12 Link to QGIS install instructions that clarify how to install OGR_FileGDB library from this resource - this should be in the install/deploy instructions.
