GeoProcessor / Command / RunProgram

Overview

The RunProgram command runs a command line program, given the full command line, and waits until the program is finished before processing additional commands. The GeoProcessor command will indicate a failure if the exit status from the program being run is non-zero. This command is useful for running an external program that perform processing that the GeoProcessor cannot. It is also useful to use the GeoProcessor’s testing features to implement quality control checks for software.

The GeoProcessor internally maintains a working folder (directory) that is used to convert relative paths to absolute paths to locate files. The working folder is by default the location of the last command file that was opened. However, the external program may assume that the working folder is the location from which GeoProcessor software was started (or the installation location if started from a menu). Therefore, it may be necessary to run the GeoProcessor in batch mode from the directory where the external software’s data files exist, use absolute paths to files, or use the ${WorkingDir} property in the command line.

Limitations of the command are as follows and will be addressed in future software updates:

  • There is currently no way to handle double quotes in the command line.
  • The command line must not exceed the length allowed by the operating system.

If the command line contains >, <, | or other special characters used by a shell, then specify UseCommandShell=True.

Command Editor

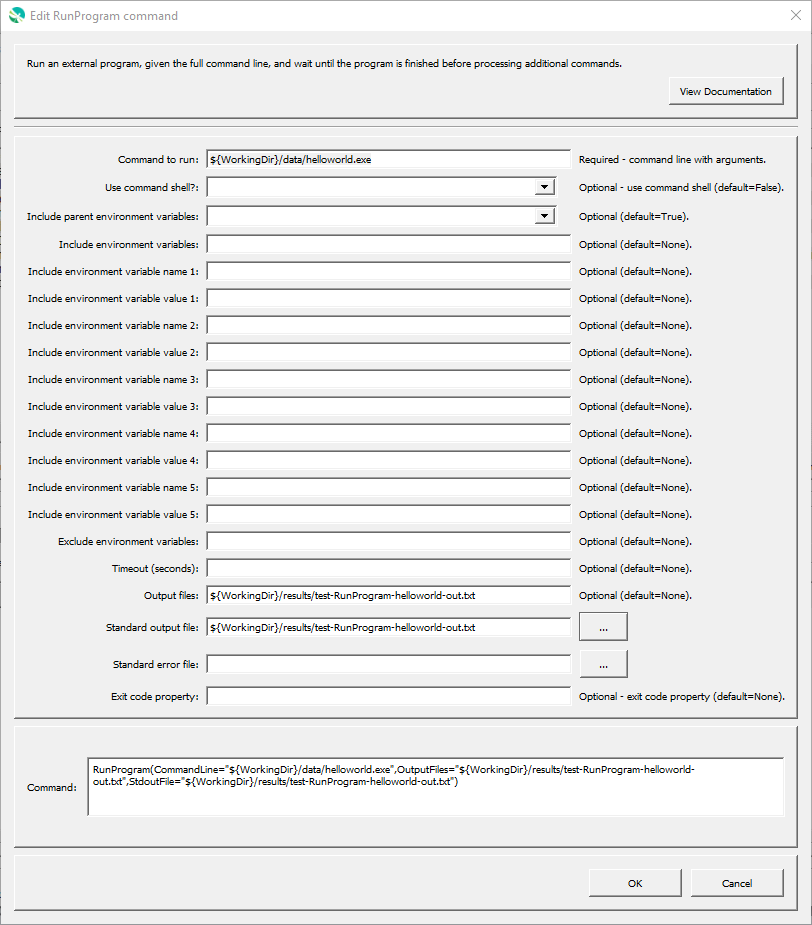

The following dialog is used to edit the command and illustrates the command syntax when running a program directly (no command shell):

RunProgram

RunProgram Command Editor (see full-size image)

Command Syntax

The command syntax is as follows:

RunProgram(Parameter="Value",...)

Command Parameters

Parameter                           Description Default
CommandLine
required		 The full program command line, with arguments. If the program executable is found in the PATH environment variable, then only the program name needs to be specified. Otherwise, specify an absolute path to the program or run the GeoProcessor from a command shell in the same directory. The command string can contain redirection and pipe characters.

The ${WorkingDir} property can be used in the command line to indicate the working directory (command file location) when specifying file names. Use ${WorkingDirNative} to preserve the native operting system folder separator characters. Other${Property}` names can also be used.		 None - must be specified.
UseCommandShell If specified as True, the program will be run using a command shell. A command shell is needed if the program is a script (batch file), a shell command, or uses >, |, etc. False.
IncludeParentEnvVars Indicate whether the parent environment variables should be passed to the program run environment by specifying (True) or ignore all parent environment variable (False). Other parameters can be used to add additional environment variables or remove environment variables from the program run environment. True.
IncludeEnvVars Specify environment variables to be defined for the program run environment, using format EnvVarName1=EnvVarValue1;EnvVarName2=EnvVarValue2;.... Other parameters can be used to add additional environment variables or remove environment variables from the program run environment.
ExcludeEnvVars Specify environment variables to be removed from the program run environment, using format EnvVarName1,EnvVarName2,.... This parameter is processed after the parameters that define environment variables in the run environment. Other parameters can be used to add additional environment variables or remove environment variables from the program run environment.
IncludeEnvVarName1 ... IncludeEnvVarName5 These parameters my be replaced with a dictionary parameter. Specify the name of as single environment variable to be defined for the program run environment. Use this parameter with corresponding IncludeEnvVarValue1 (through IncludeEnvVarValue5) as an alternative to the IncludeEnvVars parameter includes formatting that is difficult to parse due to special characters, etc. Other parameters can be used to add additional environment variables or remove environment variables from the program run environment.
IncludeEnvVarValue1 ... IncludeEnvVarValue5 These parameters my be replaced with a dictionary parameter. Specify the value of as single environment variable to be defined for the program run environment. Use this parameter with corresponding IncludeEnvVarName1 (through IncludeEnvVarName5) as an alternative to the IncludeEnvVars parameter includes formatting that is difficult to parse due to special characters, etc. Other parameters can be used to add additional environment variables or remove environment variables from the program run environment.
Timeout Timeout in seconds. No timeout.
OutputFiles Names of output files, separated by commas, to list in Results. Can use ${Property} notation.
StdoutFile File to capture standard output:
  • Path to output file - to output to the specified file
  • DEVNULL - redirect to /dev/null (absorb)
  • logfile - append to the log file
 Output to terminal window.
StderrFile File to capture standard error:
  • Path to output file - to output to the specified file
  • DEVNULL - redirect to /dev/null (absorb)
  • STDOUT - append to standard output
  • logfile - append to the log file
 Output to terminal window.
ExitCodeProperty Property name to set to the GDAL program exit code.
