TSTool / Command / GoogleDrive

Overview

The GoogleDrive command performs tasks for Google Drive, which is used to store files in the cloud.

Google Drive concepts and terminology are used in the GoogleDrive command parameters:

  • Google Drive is authenticated in one of the following ways, which typically requires the Google account manager to configure authentication (see the Enable API Appendix):
  • Google drive can be accessed using:
    • Desktop software integrated with Windows File Explorer, in which case the G: (or another) drive maps to Google Drive files.
    • Google Drive website, accessible from the upper right tool grid from Google Mail, Calendar, etc.
    • Web Services API integrated with desktop and web applications, which is used by TSTool for this plugin.
  • Top-level files in Google Drive are organized under:
    • My Drive folder:
      • files and folders owned by the user
      • desktop Google Drive also includes files and folders shared by others
    • Shared drives folder:
      • for drives that have been shared by others, which are shared workspaces
    • Shared with me folder:
      • the Google Drive web application shows a Shared with me folder
      • the desktop Google Drive shows shared files and folders under My Drive
  • Google Drive folder and file objects are identified by:
    • a long unique string containing characters and numbers, which is shown in URLs
    • a path that maps to folders and files using / delimiter

The following shows how the above top-level Google Drive folders are shown in the desktop in Windows Explorer:

  • uses the G: drive letter (can be changed using Google Drive settings)
  • includes My Drive and Shared drives top level virtual drives
  • "Shared with me" folders and files are listed directly under My Drive but no Shared with me folder is used
  • paths are used to locate folders and files and can be opened in File Explorer and other applications
  • the Google Drive unique identifier for each folder and file is not shown
  • the icon typically shows a cloud when the streaming approach is used (store in the cloud and only save a local copy when editing locally)
  • sharing a folder or file will use the identifier, for example via a link in an email

GoogleDrive desktop

GoogleDrive Desktop Application (see full-size image)

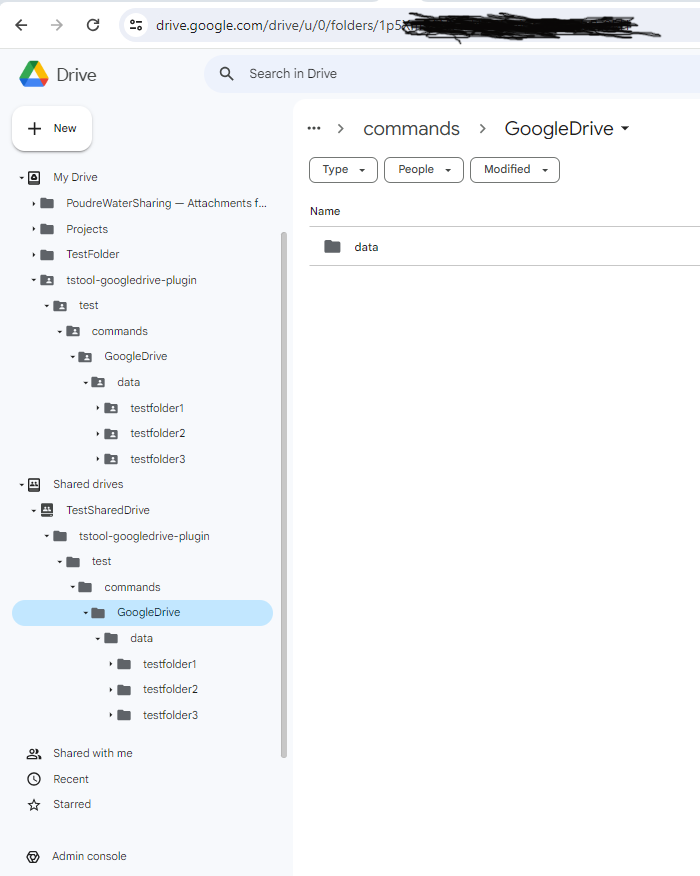

The following shows how the above top-level Google Drive folders are shown in the web application:

  • top-level objects include My Drive, Shared drives, and Shared with me, using different icons
  • paths are shown for folders and files using a "bread crumb trail" at the top of the page
  • the URL for a resource shows the unique identifier for the parent folder; however, if a file is selected, the URL does not show the identifier for the file
  • the icon shows whether the resource is shared (person in the folder)
  • sharing a folder or file will use the identifier, for example via a link in an email

GoogleDrive web app

GoogleDrive Web Application (see full-size image)

The above details are handled by this command so that Google Drive technical constraints do not need to be fully understood:

  • as much as possible, paths to folders and files are used rather than the identifier
  • provide features to operate on folders even when the Google Drive API does not provide these features (under development)
  • provide wildcard (*) features (under development)
  • using the API in TSTool allows Google Drive to be accessed on Windows and Linux

Command Editor

The following dialog is used to edit the command and illustrates the syntax for the command. Each GoogleDrive command has a tab for parameters specific to that command. The Output tab is used with the List and ListDrives commands.

Command parameters are provided to help with automated tests and error checks. For example the ListCountProperty parameter can be used to set a processor property containing the number of items in the returned list. Use the If command to check the property value.

Notes at the top of the editor indicate whether the user's Google Drive configuration is authenticated and if not an error message and recommendation are shown to help troubleshoot problems. Editing a new command will always display an error message until a valid SessionID is specified. See also the Credential Files section.

GoogleDrive command editor

GoogleDrive Command Editor (see full-size image)

Download

Use the GoogleDriveCommand=Download parameter to download files and folders to the local computer.

Currently only files can be downloaded and wildcards are not enabled.

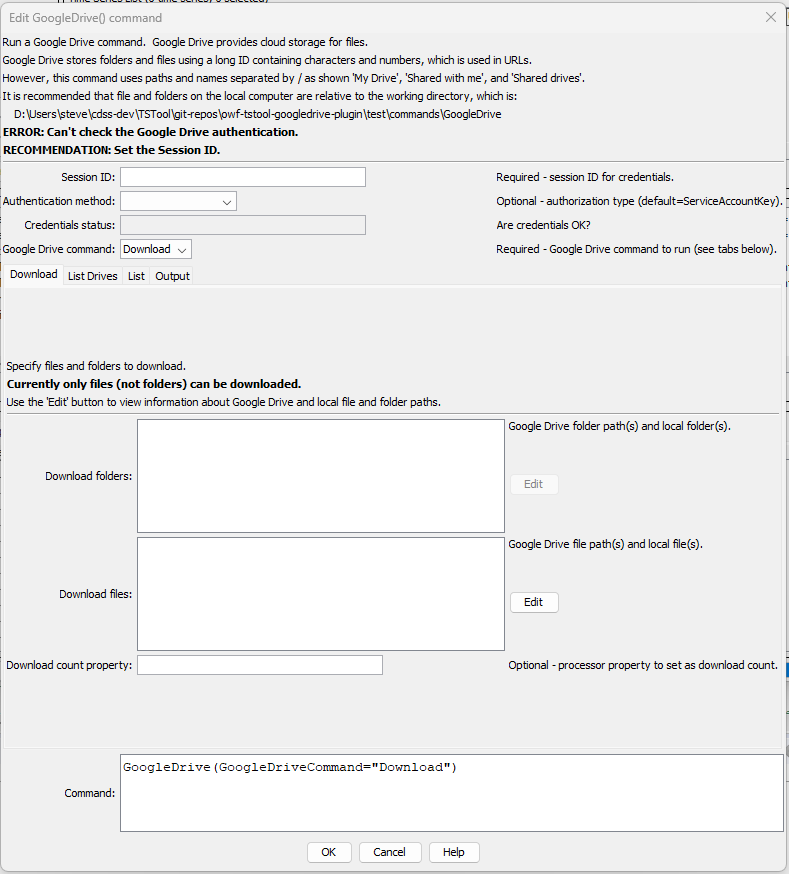

GoogleDrive download command

GoogleDrive Command Editor for Download Parameters (see full-size image)

List

Use the GoogleDriveCommand=List parameter to list files and folders. The folder/file identifier, name, and other properties are output to the specified table and/or file. Refer to the table in the command editor for instructions.

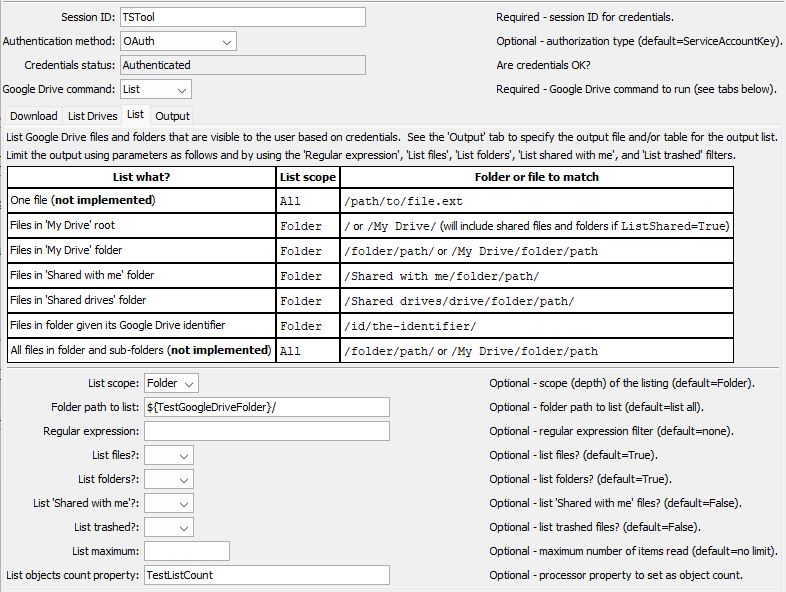

The following example shows how to list a folder using OAuth authentication. The folder to list is set to a path under /My Drive using a property.

GoogleDrive list command

Google Drive Command Editor for List Parameters (see full-size image)

List Drives

Use the GoogleDriveCommand=ListDrives parameter to list drives. The drive identifier, name, and creation time are output to the specified table and/or file.

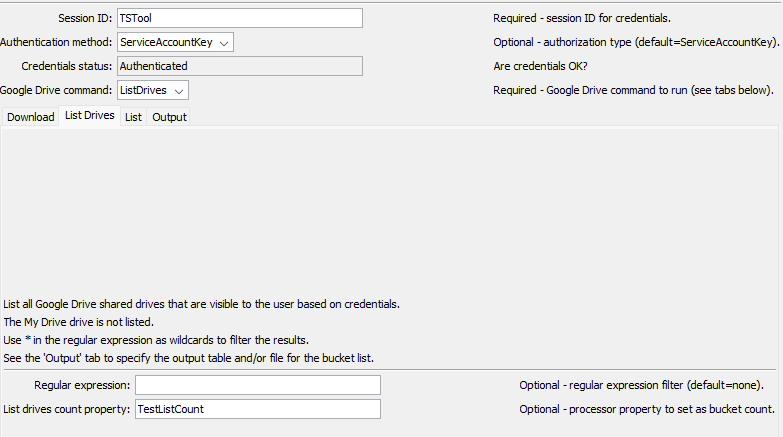

GoogleDrive list drives command

Google Drive Command Editor for List Drives Parameters (see full-size image)

Output

The Output tab is used to specify output parameters and is used with the GoogleDriveCommand=List parameter.

GoogleDrive output

GoogleDrive Command Editor for Output Parameters (see full-size image)

Command Syntax

The command syntax is as follows:

Googledrive(Parameter="Value",...)

The following tables list command parameters for each GoogleDriveCommand value. The general parameters apply to all GoogleDrive commands, except where noted.

General Command Parameters

General command parameters are used with most of the commands, except where noted. Note that because these parameters are used to provide information in the editor, the ${Property} notation is not supported for some parameters and will cause issues for interactive command editing.

Command Parameters - General

Parameter                          Description Default
SessionID
required		 A session identifier, which is used to determine credential file names. See the Credential Files section. None - must be specified.
AuthenticationMethod Authentication method to use as per the Enable API Appendix:
  • OAuth - OAuth 2.0
  • ServiceAccountKey - service account API key
 ServiceAccountKey
Credentials status: A note that indicates whether the credentials have been authenticated.
GoogleDriveCommand
required		 The Google Drive command to run, which indicates which tab's parameters are used. None - must be specified.
IfInputNotFound Message level when input is not found: Ignore, Warn, or Fail. This is under development. Warn

Credential Files

See the Appendix - Enable API documentation for information about enabling the Google Drive API.

The SessionID parameter is used to indicate the credential file to use for the command. A credential file must be provided to allow OAuth or a service account key to be authenticated. Separate credential files are used for each authentication method.

Multiple credential files can be created for different access levels, which can be coordinated in an organization to manage automated workflows.

Download Command Parameters

Use the following combination of parameters with GoogleDriveCommand=Download to download files.

Command Parameters - Download

Parameter                                  Description Default
DownloadFolders Not implemented.
DownloadFiles List of files to download using syntax: GoogleDrivePath1:LocalPath1,GoogleDrivePath2:LocalPath2, where the Google Drive path identifies a Google Drive file and LocalPath is the path to the local file. Can use ${Property} syntax. If the end of the local file part of the path is /*, then the local file name will be set to the Google Drive file name. The start of the Google Drive path can be one of the following to indicate the location of the Google Drive file:
  • /My Drive/ (or no /My Drive/) to match files in My Drive
  • /Shared drives/drivename/ - to match files in a shared drive
  • /Shared with me/ - to match files in Shared with me
DownloadCountProperty Processor property to set containing the number of files downloaded.

List Command Parameters

Use the following combination of parameters with GoogleDriveCommand=List to list files and folders.

Parameter Combinations to List Files and Folders

List What? ListScope Parameter ListFolder Parameter
One file (not implemented) All /path/to/file
Files in My Drive root Folder / or /My Drive (will include shared files and folders if ListSharedWithMe=True.
Files in My Drive folder Folder /folder/path/ or /My Drive/folder/path/.
Files in Shared with me folder Folder /Shared with me/folder/path/.
Files in Shared drives folder Folder /Shared drives/drive/folder/path/.
Files in folder given its Google Drive identifier Folder /id/identifier/.
All files in folder and sub-folders (not implemented) All /folder/path/ or /My Drive/folder/path/.

Command Parameters - List Files and Folders

Parameter                                  Description Default
ListScope Indicates how deep the listing is:
  • All - list all files and subfolder contents
  • Folder - list only the contents of a specific folder but not the contents of subfolders
Use the ListFiles, ListFolders, ListSharedWithMe, ListTrashed, and ListRegEx parameters to further constrain output.		 All
ListFolder Folder to list:
  • When listing a folder's contents, indicate the folder to list with leading and trailing / (e.g., /folder1/folder2/)
.		 Folder
ListRegEx Regular expression to filter folder and file names: All files and folders in the ListScope are listed.
ListFiles Whether files are listed, True or False. True
ListFolders Whether folders are listed, True or False. True
ListSharedWithMe Whether files that have been shared are listed, True or False. Use when listing the My Drive root folder. False
ListTrashed Whether files that have been moved to the recycling bin (deleted) are listed, True or False. Trashed files are automatically removed after approximately 30 days. False
ListMax The maximum number of folders and files to output. 1000 API default.
ListCountProperty Processor property to set containing the number of output files and folders in the list. If appending to output (Output AppendOutput=True) the count will be the total count.

List Drives Command Parameters

Use the following combination of parameters with GoogleDriveCommand=ListDrives to list shared drives. My Drive is not included in the output.

Command Parameters - List Drives

Parameter                                  Description Default
ListDrivesRegEx Regular expression to filter drive names: All shared drives are listed.
ListDrivesCountProperty Processor property to set containing the number of output drives in the list. If appending to output (Output AppendOutput=True) the count will be the total count.

Output Command Parameters

The following parameters are used with GoogleDriveCommand=List command. Output from this GoogleDrive command can be saved to a table and/or file. If a table is output with an output file, the table is used to create the output file. If outputting to a file only, a temporary table is used internally and then the file is created from the table.

Command Parameters - Output

Parameter                          Description Default
OutputTableID Table identifier for output, used with list commands, can use ${Property} syntax.
OutputFile Name of file for output, used with list commands, can use ${Property} syntax. The file extension (.csv) indicates the format. Currently only csv format is supported. If necessary, write the table to a different format using a separate command.
AppendOutput Append the output to an existing table (and file). Create the table/file if they do not exist. Overwrite the existing table and file without appending.

Examples

See the automated tests. Automated tests require Google Drive API permissions to run and are configured for Open Water Foundation tests.

Troubleshooting

If there is an error, view the TSTool log file using the Tools / Diagnostics - View Log File... menu. If necessary, use the SetDebugLevel command to troubleshoot (turn debug on to the log file before a command and then set levels to zero after a command).
